Volkswagen T1 (1949 – 1968) Review
Volkswagen T1 (1949 – 1968) At A Glance
Roomy, simple, elegant, and a lifestyle choice
Slow and wobbly without modifications
Volkswagen started work on its first commercial vehicle, and launched it three years later. It was officially designated as the Type 2, but is also known as the T1. Either way, it was a shape which launched a million campers - and there were several different body variations to choose from.
The most popular and numerous were the Kombi (Kombinationskraftwagen – a windowed combination of passenger and cargo vehicle, usually referred to as a ‘bus’) and the Camper. Westfalia created most of the latter. These early vans were nicknamed ‘Split’ or ‘Splittie’ due to their two-piece windscreen, and VW updated the mechanical side of the vehicles constantly while leaving their looks mostly untouched until 1968.
Model History
- January 1947: Type 2 first thoughts
- January 1949: Type 2 launched
- January 1950: Range extended
- January 1951: The legendary Samba is added to the line-up
- January 1952: Pick-up arrives.
- January 1954: Type 2 gets more power
- January 1958: Double-cab goes on sale
- January 1959: More power and a better gearbox
- January 1961: A 'big' year for the Type 2
- January 1963: The 1.5-litre option added to the range
- January 1966: Electrical system gets a much-needed upgrade
- January 1967: Split-screen model replaced by the Bay window version
January 1947
Type 2 first thoughts
Ben Pon came up with Transporter design sketches, inspired by forward control Beetle-based trucks at Volkswagen’s Wolfsburg factory.
January 1949
Type 2 launched
Type 2 shown, powered by the 1131cc flat-four developing 25bhp.
January 1950
Range extended
Type 2 panel van goes on sale, quickly followed by the Kombi.
January 1951
The legendary Samba is added to the line-up

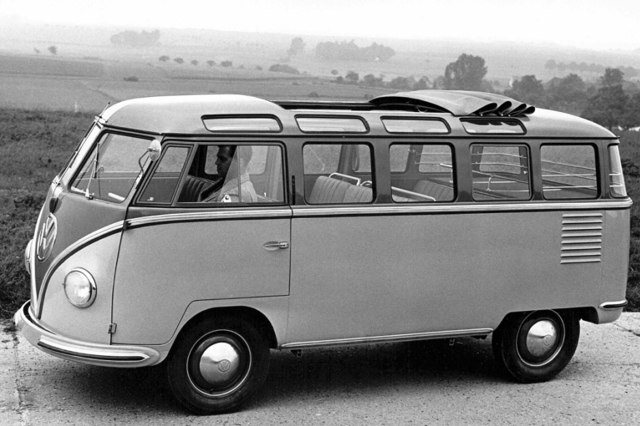

The Type 2 Volkswagen Samba bus is launched, but is otherwise known as the Microbus DeLuxe.
January 1952
Pick-up arrives.
January 1954
Type 2 gets more power
Engine capacity increased to 1192cc; power rises to 30bhp. Right-hand-drive vans now offered in the UK.
January 1958
Double-cab goes on sale
January 1959
More power and a better gearbox
Power increased to 34bhp and all-synchromesh gearbox fitted, improving the driving experience.
January 1961
A 'big' year for the Type 2
High-roof panel van added to the range, and the millionth Transporter leaves the factory.
January 1963
The 1.5-litre option added to the range
The 1497cc power unit now available at extra cost: it developed 42bhp, increasing to 44bhp in 1965.
January 1966
Electrical system gets a much-needed upgrade
Heavy Type 2 users welcome the arrival of 12-volt electrics to replace the original six-volt system.
January 1967
Split-screen model replaced by the Bay window version
All-new styling for the Type 2, with the split-screen with single-piece ‘bay window’. Much-needed 1584cc flat-four engine now fitted, now developing 47bhp.
Volkswagen T1 (1949 – 1968) Buying Guide
Good
- Cool
- Usable
- Highly versatile
- Massive selection available with prices to suit almost all budgets
Bad
- Rust is an issue
- Restoration is not straightforward and costly
- Underpowered unless tuned
- Wobbly road manners unless upgraded
Watch
- On campers, check the quality of split charging systems or leisure batteries, and also any aftermarket add-ons that have undoubtedly been fitted along the way.
- As for interiors - repro and custom trim is the best way of getting immaculate insides, as originals are now near-unobtainium. Original seats are rare, but re-trimming is straightforward.
- Servicing is easy and straightforward - engine removal is relatively simple for larger jobs.
- Gearboxes cause little problems at all.
- Check the engine for signs of wear - blue smoke is a giveaway for worn rings or bores. Rebuilding is easy and cheap, and secondhand engines are plentiful. You can swap engines between models simply.
- Pre-1960 Type 2s with the 1192cc engine brake that rule - the earliest parts are harder to find and much more expensive.
- Check for signs of overheating - good flat-fours can run all day without getting hot.
- Pulling on the fan belt pulley to check for crankshaft float - if there's visual movement, the main bearings are shot and you need a rebuild.
- Make sure the oil has been changed every 3000 miles.
- Check for rusty heat exchanger - you know because the heater won't be working and the interior smells of exhaust fumes.
- Check the steering for free play, but if the bearing needs looking at, it's easily adjustable.
- If it's the kingpin, repair kits are available, complete with all bushes, bearings, shims and seals.
- If it's lowered, make sure it's been done properly - if the beam axle has been cut, check the quality of the weld is good, without stress or cracks etc.
- Check drum brakes aren't suffering from leaking wheel cylinders - easy to fix, but not always cheap.
- Rusty panels - new ones are all available off the shelf.
- The main places to check for rust are the sills, wheelarches, door bottoms and front valance.
- Closely check the floorpan, most notably, at the front.
- Chassis rails are also worrisome, which is a problem as they are tought to repair properly.
- Other rust spots: inner wheelarches, battery tray, and the leading edge of the roof.
- Check the cotton-covered rubber hose for sign of perishing - it's a complex and sometimes hot run from the petrol above the rear axle to the engine - this should be changed regularly.
- Pre-1966 six-volt electrics particularly susceptible to poor connections and bad earths - most will have been upgraded to 12-volt systems.
Running Volkswagen T1 (1949 – 1968)
- Custom And Commercial: +44 (0)1372 452297, www.customandcommercial.com
- FBIVW (sales): +44 (0)1792 585544, www.fbivw.com
- J&S Upholstery: +44 (0)1302 789112, www.vwinteriors.com
- Karmann Konnection: +44 (0)1702 60155, www.karmannkonnection.com
- Kombi Klassics: +44 (0)1929 553336, www.kombiklassics.co.uk
- Schofield & Sons: +44 (0)1457 854267, www.ahschofield.co.uk
- Split Screen Van Club: +44 (0)1274 596564 (membership enquiries)
- Status VW: +44 (0)1524 272915, www.status-vw.co.uk
- VW Heritage: +44 (0)1273 495800, www.vwheritage.com
Volkswagen T1
| 0–60 | 55.0 s |
| Top speed | 62 mph |
| Power | 30 bhp |
| Torque | 56 lb ft |
| Weight | 1100 kg |
| Cylinders | F4 |
| Engine capacity | 1192 cc |
| Layout | RR |
| Transmission | 4M |
